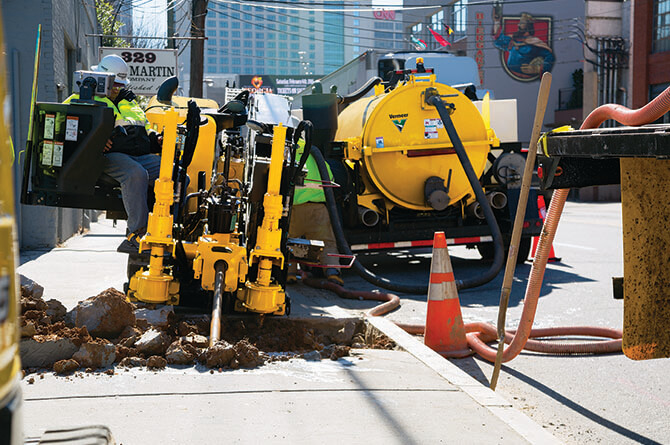

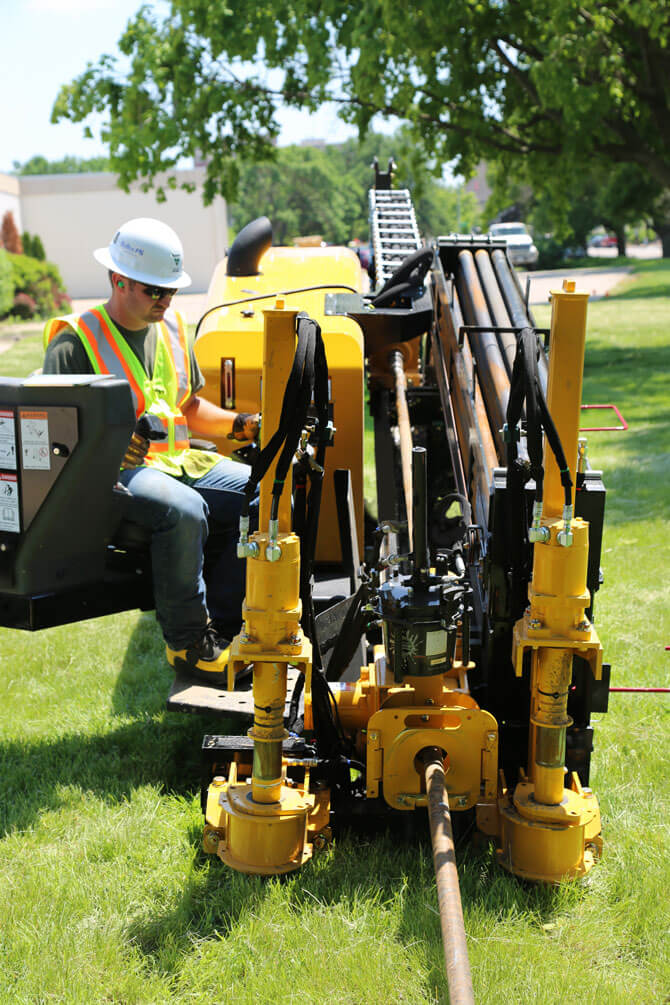

By listening closely to the needs of contractors working in congested urban areas, our goal was to make this S3 drill a perfect fit for your operation — whether you’re installing cable, fiber or product pipe. With nearly 20,000 lb (89 kN) of thrust and pullback, and a Tier 4 Deutz engine that delivers a 12% increase in horsepower over its predecessor (D16x20 Series II Navigator® horizontal directional drill), the D20x22 S3 is the next key addition to your fleet of drills.
| Manufacturer | Vermeer |
| Model | D20x22 S3 HDD |
| Category | Renewable Energy, Utility Installation |
| Price | Request a Quote |
| Year | 2024 |
| Minimum Bore Diameter | (7.6cm) |
| Maximum Spindle Speed at Max Engine RPM | 257rpm |
| Automated Rod Loader | Semi-automated |
| Drill Rack Angle | 17deg |
| Maximum Ground Drive Speed at Maximum Engine RPM | (5.3km/h) |
| Maximum Carriage Speed at Maximum Engine RPM | (48.8m/min) |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | (3050.6Nm) |
| Maximum Carriage Speed in Low at Maximum Engine RPM | (34.7m/min) |
| Guaranteed sound power (CE-rating) | 106 dB(A) |
| Thrust | (86.7kN) |
| Pullback | (86.7kN) |
| Maximum Pressure | (51.7bar) |
| Maximum Flow | (94.6L/min) |
| Fuel Type | Low sulfur diesel |
| Make and Model | Deutz TD2.9 |
| Aspiration | Turbocharged |
| Gross Horsepower | (55.2kw) |
| Maximum Engine RPM | 2600rpm |
| Emissions rating | Tier 4i (EU Stage IIIA) |
| Displacement | (2.9L) |
| Cooling Method | Liquid |
| Noise Level at Operator's Ear | 86.5 dB(A) |
| Stakedown System | Standard |
| Breakout System | Standard hydraulic vice |
| Flow Indicator | Standard |
| Drilling Lights | Optional |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| Operator Presence | Standard |
| Weight | (5307kg) |
| Angle of Approach | 18deg |
| Length (Minimum Transport) | (518.2cm) |
| Width (Minimum Transport) | (120.7cm) |
| Height (Minimum Transport) | (188cm) |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Ultra-low sulfur diesel |
| Maximum Engine RPM | 2600rpm |
| Gross Horsepower | (55.2kw) |
| Aspiration | Turbocharged |
| Emissions rating | Tier 4 Final (EU Stage IV) |
| Displacement | (2.9L) |
| Cooling Method | Liquid |
| Noise Level at Operator's Ear | 86.5 dB(A) |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Ultra-low sulfur diesel |
| Maximum Engine RPM | 2600rpm |
| Gross Horsepower | (55.2kw) |
| Displacement | (2.9L) |
| Cooling Method | Liquid |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 91 dB(A) |
| Emissions rating | Tier 4 Final (EU Stage V) |
